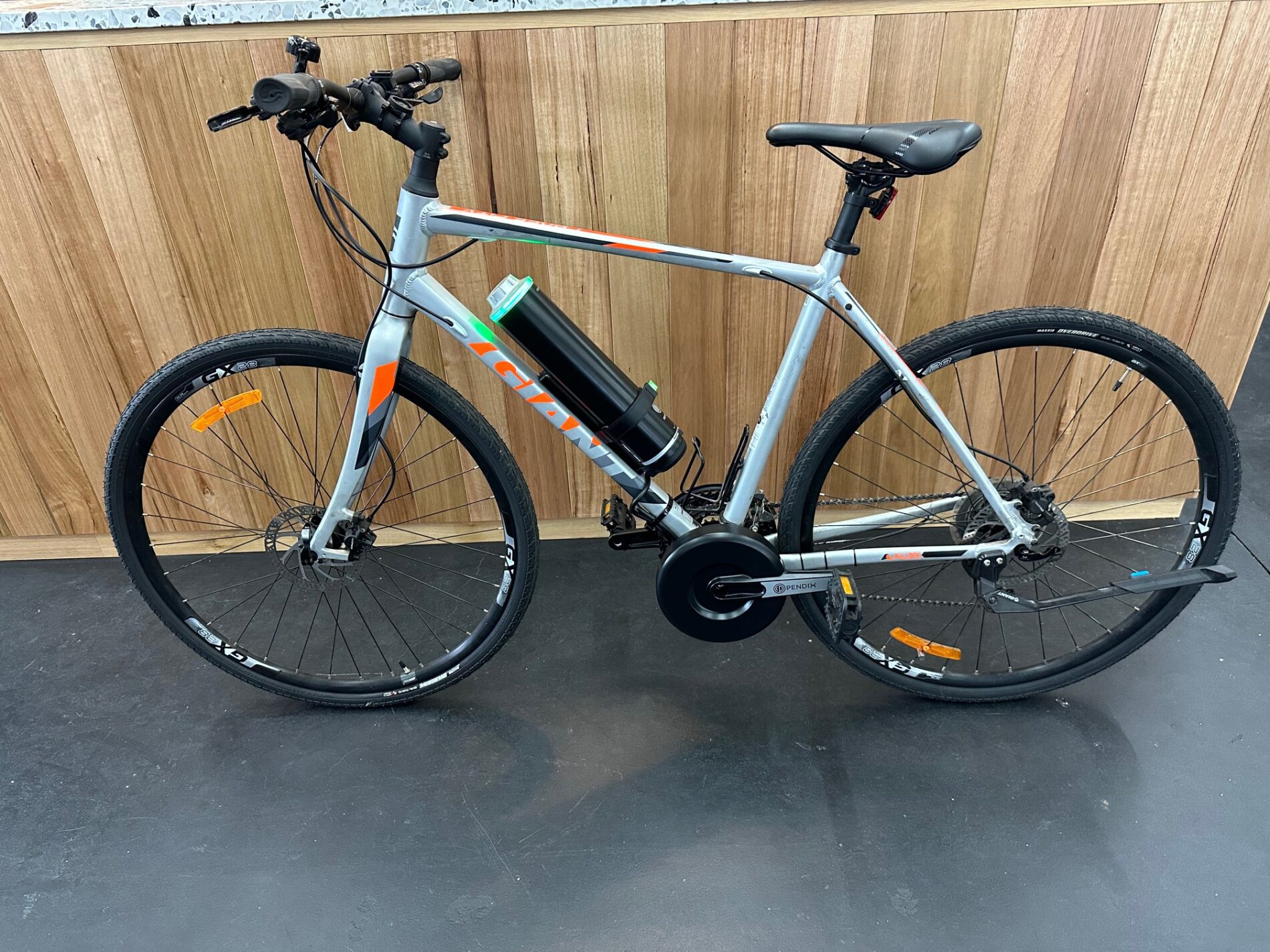

Pendix | The eBike conversion kit for all bicycle types

Convert your favourite bike into an electric bike by retrofitting it with a Pendix eBike drive – the high-performance German-engineered e-bike kit technology. The kit is suitable for DIY fitting but we can also arrange to fit it for you at our store or via participating dealers. Contact us to discuss. It’s much easier to fit than other DIY systems because the wiring is very simple. There is no display, you control it with a simple switch on top of the battery but you can also connect to your phone with the free Pendix app.

Screen Shot 2020 01 24 at 3.27.02 pm

Pendix eDrive lets you decide when your bike becomes an eBike. With a flick of a switch go up hills with motor support or just use your own muscle power. Though you’ll really appreciate some pedal-assist power on the way to work (no more sweating), popping down the shops in a hurry or if you’re struggling to pedal your box cargo bike with two kids on board.

The Pendix eDrive consists of the battery unit and the mid drive motor. It can be fitted to practically any style of bike or frame type. And if you want to upgrade your bike after a few years, the Pendix can easily be mounted on your new bike.

The new motor generation – eDrive

With 65 Nm torque the Pendix motor is comparable to Bosch and Shimano systems. It is deliberately kept simple with 3 levels of power chosen from a rotating knob on the battery.  The free Pendix bike PRO app completes the smart Pendix system and allows you to monitor distance travelled, speed and range on your smartphone. If you attach your phone to the handlebars you can use it to show this data while riding.

The range under motor is approx 60-100km depending on terrain.

Quiet. Quieter.

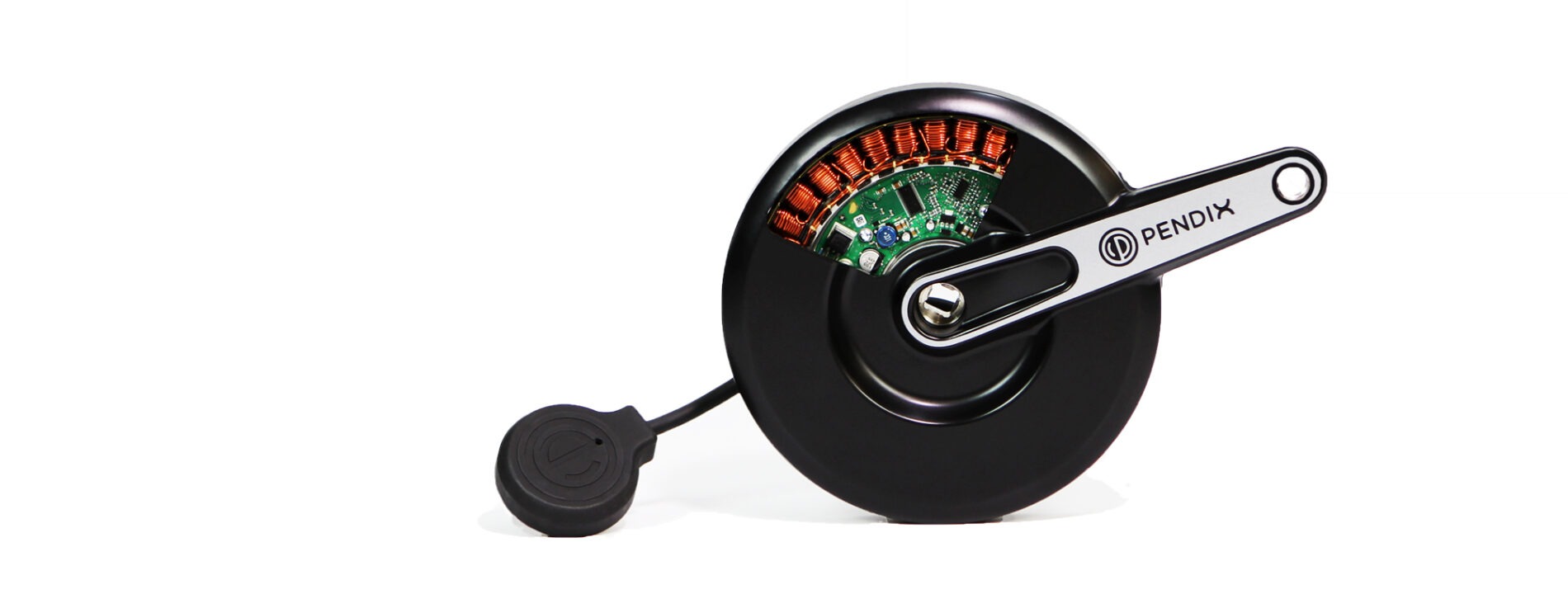

Don’t be fooled by the understated nature of the system. The entire construction reflects the competence of German engineers in development. The engine is approx 3 cm deep and has a diameter of less than 30 cm. All the smart technology is packed into this space and protected from external environmental impacts by the metal casing. The Pendix eDrive does not require gears at all, so there are no mechanical wear parts. Where there is no wear and tear, there is no maintenance, so you get a motor that is maintenance-free. The gearless design also has two other advantages. Firstly, it is absolutely noiseless. On the other hand, you hardly feel any pedaling resistance when it is switched off. So you can decide for yourself when you need assistance and continue to use your bike as a bicycle.

  1. Noiseless and maintenance-free system
  2. Optimum mounting position on the bicycle due to mid-mounted motor
  3. Water- and dust-resistant according to IP65
  4. Hardly noticeable pedaling resistance when the engine is switched off or the battery is empty
  5. Can be combined with all switching and braking systems

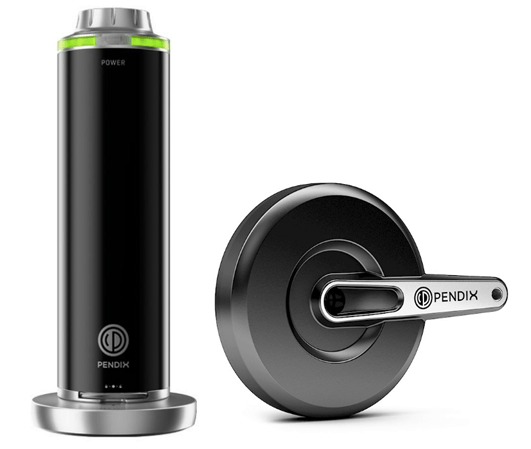

Pendix kit 2

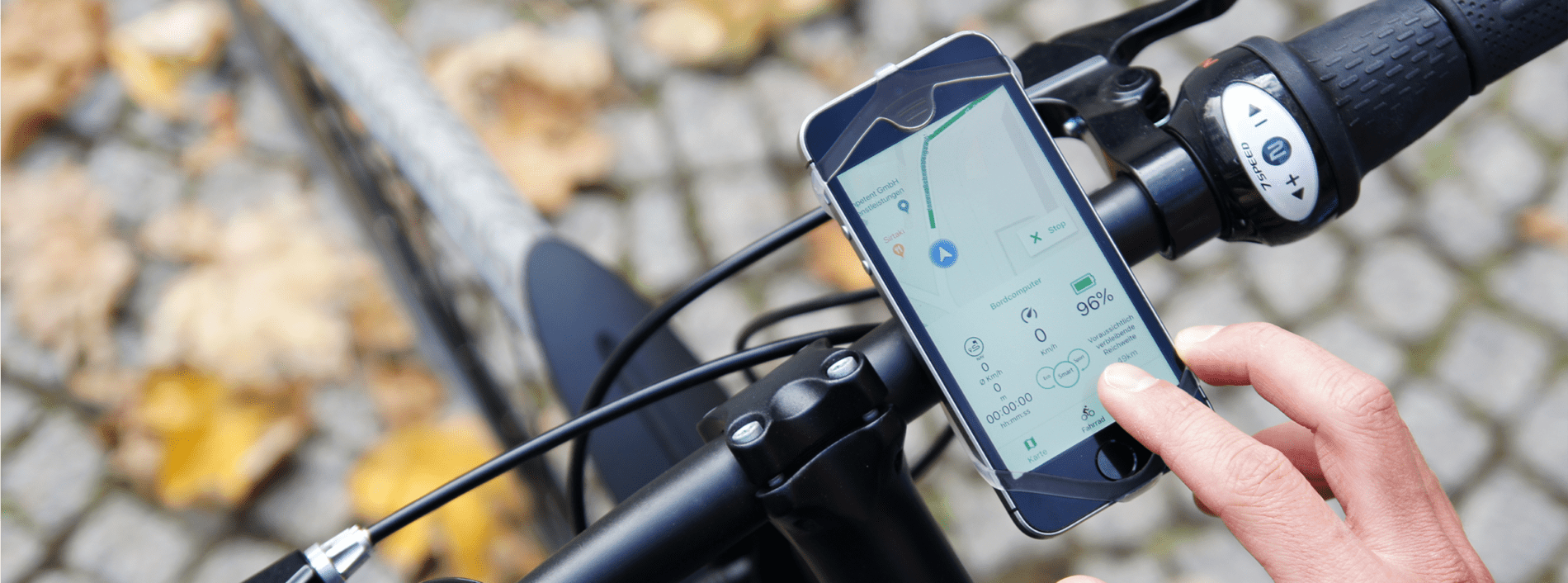

From bike to smart electric bike thanks to the Pendix.bike PRO App

As soon as you have downloaded the Pendix.bike PRO App to your mobile phone and registered you can establish a connection to your system. For the connection between your mobile phone and the Pendix eDrive set the rotary knob on the ePower to Smart and press the power button for 4 seconds. This will activate the Bluetooth on the battery. Now you can go to the tab “Bike” in the app and search for your system. Select it and the connection between the Pendix App and the Pendix System will be established.

  1. Record average speeddistance and duration for day trips and the total distance travelled.
  2. Display of current speedcadence and support level
  3. Percentage display of the charge level of your Pendix ePower
  4. Navigation function for optimum routing to your destination
  5. Display of various battery and drive data at a glance
  6. Display of battery and drive errors incl. history
  7. Creation of your own user profile and its administration
  8. Viewing and performing Pendix firmware updates*
  9. Changing the motor settings with the “Drive profiles” function

The Pendix ePower battery

The Pendix eDrive is available with two battery options – ePower300 and ePower500. Charging is also easy – with just one movement of your hand, you release the battery from the holder on the bicycle frame. The battery unit is simply placed on the included power station and your Pendix eDrive is ready for use in no time. Battery charge is indicated by an LED ring of lights on top of the battery, so you’ll know how much charge you have left when you’re riding.

Controller

With three levels of assist; Eco, Smart and Sport, available on the battery unit’s beautifully shaped rotary selector, you can quickly and precisely select how much power you need.

Call into the Cargocycles shop or call us on 03 9042 9058 to discuss retrofitting a Pendix eDrive system to your bike.

Fitting is available to most bikes from $300 or free if you buy a new bike at the same time. The Pendix system can only be supplied and fitted by a registered Pendix Dealer.

Read about the Pendix group of companies here.

See some example bikes we have converted here.

Pendix eDrive for all bikes





  • SALE

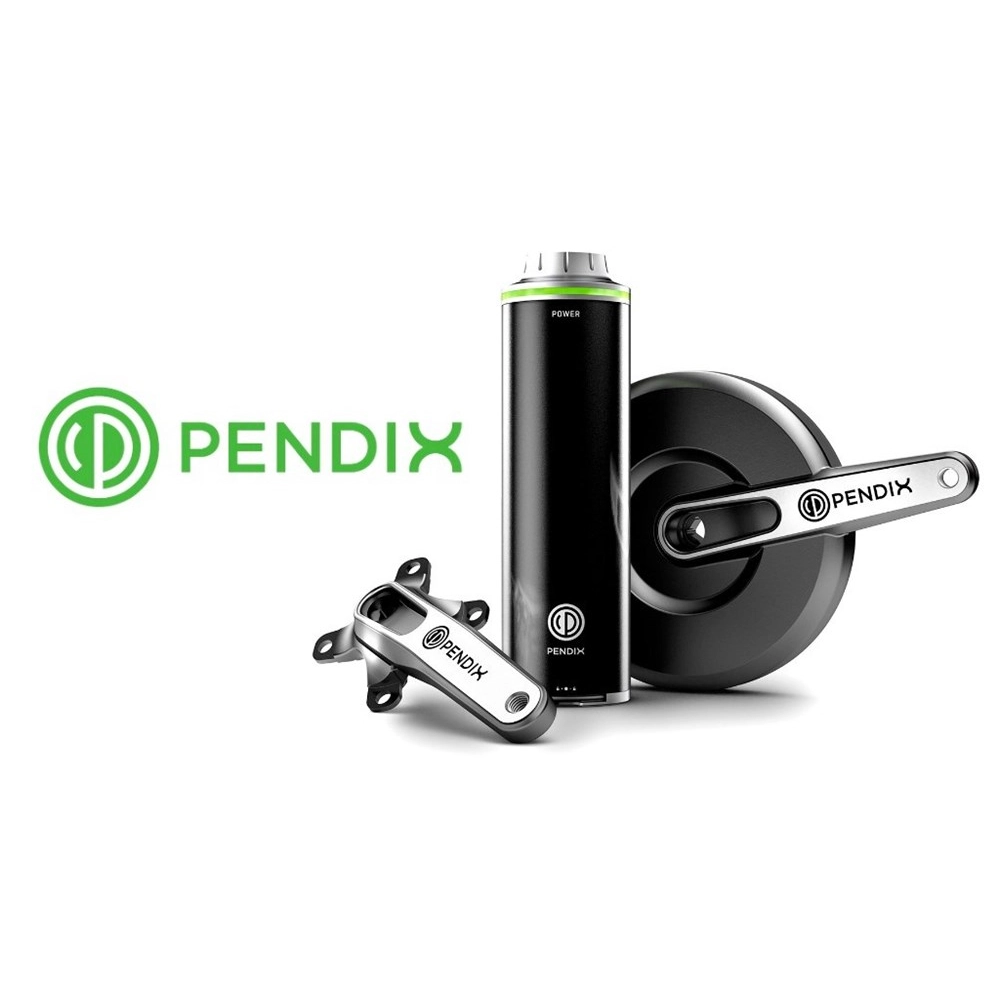

    Pendix eDrive Electric Conversion Kit

    $1,795.00

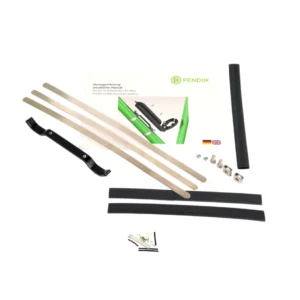

  • Pendix Downtube Clamp Mount for Battery

    $69.95

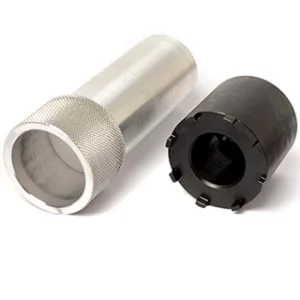

  • Pendix Tools

    $75.00

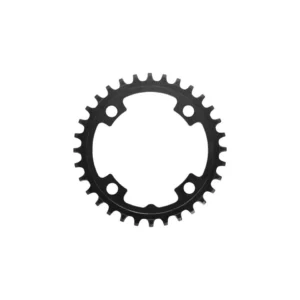

  • Pendix Chainring – 104BCD

    $69.95

Brompton electric bike – Pendix mid-drive conversion

The legendary Brompton folding bike converted with a mid-drive motor to be a fully functioning electric Brompton.

Nihola Pendix Mid Drive Electric Conversion

This Nihola trike had a Promovec rear hub motor electric drive. The battery was old and tired and hard to source a replacement. Our solution was to repower it with a Pendix mid-drive electric motor. The rear axle of the Promovec is an unusual width so for now it is keeping the old hub motor [...]

Yuba Sweet Curry Pendix Mid Drive Electric Conversion

The Yuba Sweet Curry is a great bike but in manual pedal-only format it starts to get a bit challenging when the kids get bigger. Enter the Pendix mid-drive conversion solution. Featuring a high quality German designed and manufactured add-on mid-drive motor you can turn the Sweet Curry into a powerful electric cargo bike. The [...]

Tern Cargo Node Electric Conversion with Pendix Mid Drive

The Tern Cargo Node is a predecessor to the more famous HSD and GSD models. They use Xtracycle parts to turn them into a cargo bike. Its owners were needing a little bit of help with the increasing weight of the passengers so we added an electric motor conversion. There are not many options for [...]

Workcycles FR8 Pendix Mid Drive Electric Conversion

This Workcycles FR8 is a hard working daily load lugger and family bike. The bikes are tough and rugged but not light. It's owners were needing a little bit of help with the increasing weight of the passengers so we added an electric motor conversion. The Pendix solution is a mid drive motor so the [...]

Polygon Path Belt Drive Pendix eDrive Conversion

The owner of this Polygon Path was looking for a good quality electric motor conversion solution that would allow him to keep his gates belt drive. Enter the Pendix eDrive motor – a high-performance mid-drive German e-bike solution. It is totally silent in operation, includes a two-year warranty on the kit and is fully legal [...]

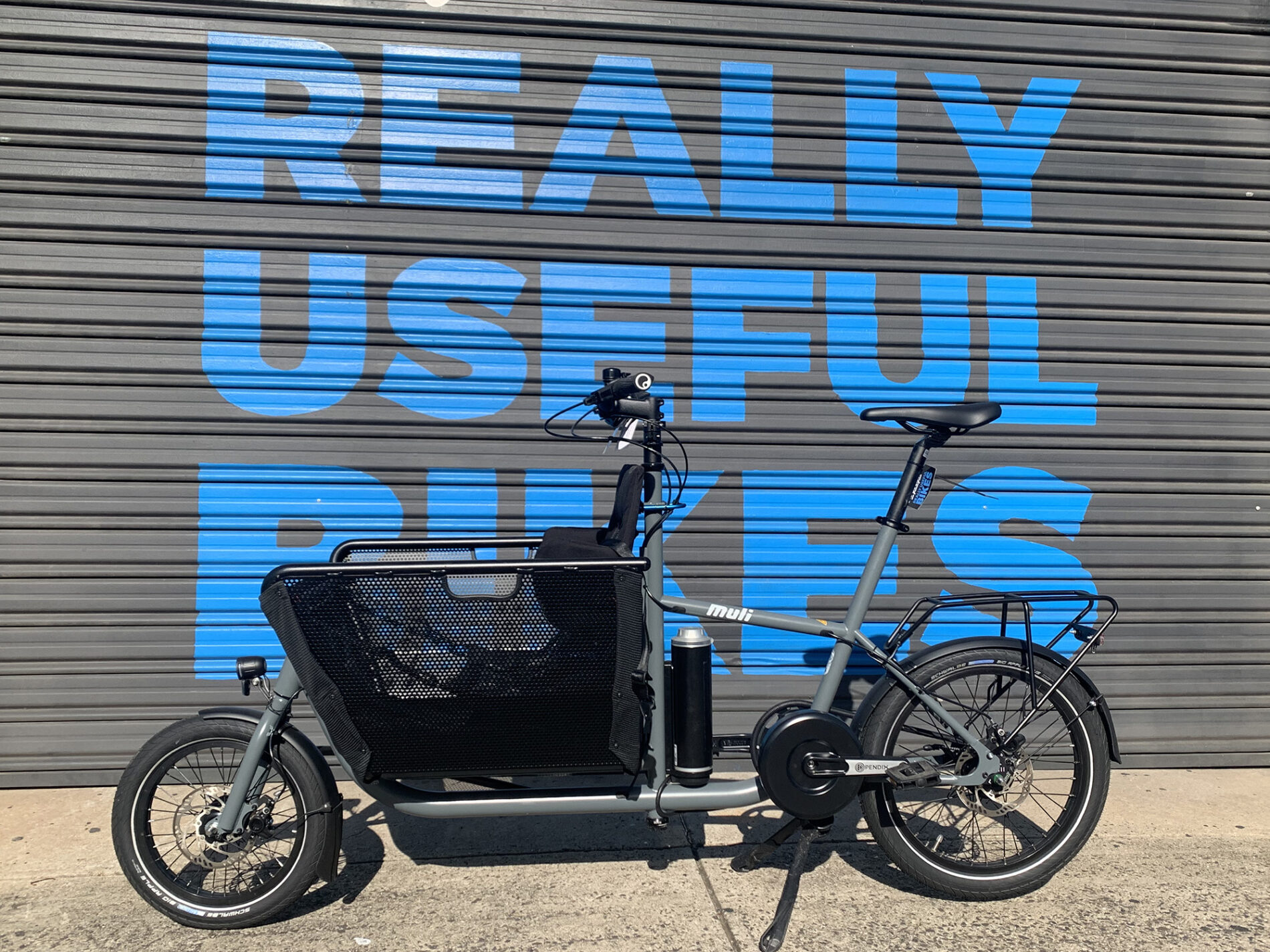

Muli Pendix eDrive Conversion

The Muli is an awesome German-designed and built compact cargo bike. What better to make every journey a lot more fun than adding a German-designed and built electric power conversion kit. Introducing the super popular Pendix eDrive motor – a high-performance German e-bike kit technology. It is totally silent in operation, includes a two-year warranty [...]

Babboe Big Pendix eDrive Conversion

The Babboe Big is a great value Dutch cargo trike with capacity for all the kids, the dog, and a week's worth of shopping. To get all that moving we can also convert it electric power by adding the super popular Pendix eDrive motor – the high-performance German e-bike kit technology. It is totally silent [...]

Yuba Supermarche Pendix electric motor conversion

Cargocycles recently added a Pendix kit to a Yuba Supermarché

Review: Pendix Electric Bike Kit

There are not many reviews around for the Pendix EDrive kit but as we find them we’ll post them on the website Here’s one from a mountain bike website in the UK Electric Mountain Bikes Blog
