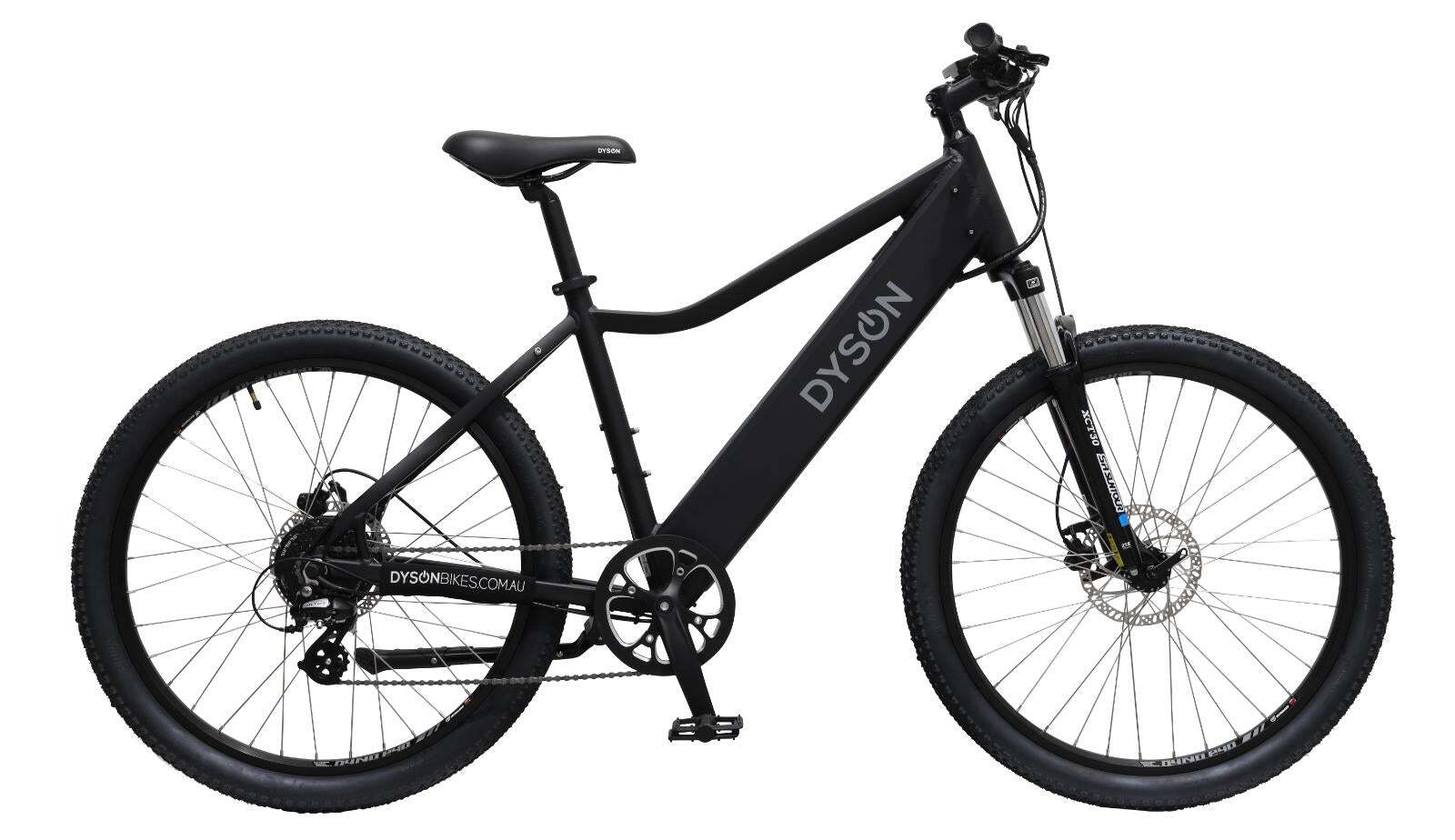

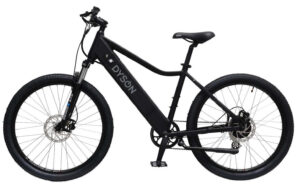

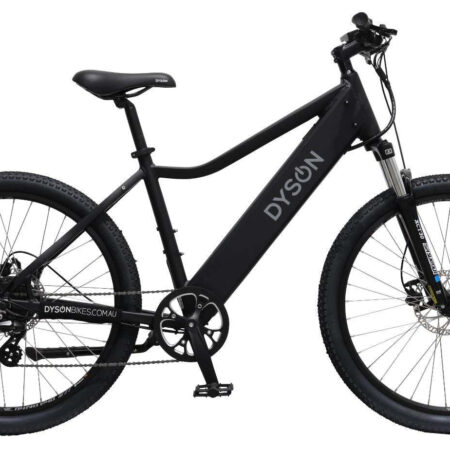

8-SPEED HARD TAIL EVO

The Dyson Hard Tail Evo alloy frames are extremely solid, well balanced and offer optimised ride geometry for comfort and safety on long and short trips alike.

The Mixte’s frame is slightly shorter than that of the Hard Tail Evo, and the Mixte also has a step-through frame design, making it easier to get on and off the bike. As a rule of thumb, riders up to around 5’8” may find the Mixte frame more suitable, while riders above 5’8” might wish to opt for the Hard Tail Evo.

The frame design aside, both bikes share identical components and offer a choice of 14Ah or 17.5Ah batteries. Most of the cabling is hidden and the battery forms a part of the frame, making these bikes look very much like traditional mountain bikes.

Quality components. It is easy to make a bike cheaper by using cheaper components and smaller capacity batteries, but we prefer to spend a little more to make something that will last and be reliable. We use Tektro brake components, stainless steel spokes, lock-on grips, sensitive motor controllers filled with resin to prevent moisture entry, Shimano gear sets and quality bearings to name just a few examples.

Designed in Australia for Australians. With feedback from thousands of customers since 2013, we have tailored our bikes to meet the needs of Australians. This translates to a comfortable riding position, smooth, consistent assistance from our unique LPC motor and control systems. We support our products through a National Dealer Network from Broome to Yepoon, and we are here to support our products from our base in Melbourne. We are happy to speak with you.

FEATURES

- The battery is the powerplant of any e-bike. We use high-quality quality fully protected Lithium-Ion batteries in our Mixte bikes, and you have a choice of either 14 Amp-Hour or 17.5 Amp-Hour capacities. The 14 Ah battery should give you around 70-80km range, and the 17.5 Ah can provide over 100km.

- Our tried and tested motors are reliable, super-quiet and have the grunt to move you and your gear. While complying with all Australian legal road use requirements, their high torque performance ensures fast acceleration and smooth hill climbing. The motors are fitted with an 8-Speed Shimano cassette for slick and snappy gear changes with efficient power transmission. They are maintenance-free and fully sealed, requiring no user service.

-Linear Power Control, (LPC) for smooth, consistent power. With Dyson Bikes' unique LPC design, the power output of the bike remains consistent in level 1-5 regardless of battery voltage and meets the requirements of Australian Standard AS 15194:2016 (EN15194:2009, MOD).

- Safety features are extremely important, and you can be assured of confident and controlled stopping power with our disc brakes with large 180mm rotors. The premium brake levers also have integrated power cut-outs to immediately turn off motor power once a brake has been applied.

- Our upright riding position and higher and wider handlebars provide you with an extremely comfortable ride, even when tackling longer distances. This increases rider alertness and awareness and also makes for a safer and more responsive ride experience. A properly designed ergonomic ride position also reduces aches and pains, increasing ride enjoyment.

- The electronic control system is precision engineered and designed for performance, reliability and easy operation. You simply select the amount of motor assistance from 0 to 6 and pedal - it's that simple. The control system will automatically apply the right amount of power to the motor. Once you stop pedalling or apply brakes, the motor assistance stops automatically. If you can ride a bike, you can ride a Dyson Bikes e-bike.

Technical Specifications

• BATTERY - Lithium-Ion / 14 Ah OR 17.5 Ah / 36V Nominal / 504Wh OR 630 Wh / Fully protected / Lockable
• RANGE – 14Ah Battery = approx 70-80km – 17.5Ah = approx 100+ km - Dependent on assistance level and riding conditions
• MOTOR - High-torque / 250W Nominal / Hub-Mounted / Maintenance-Free
• ASSIST FUNCTION - Pedal Assist

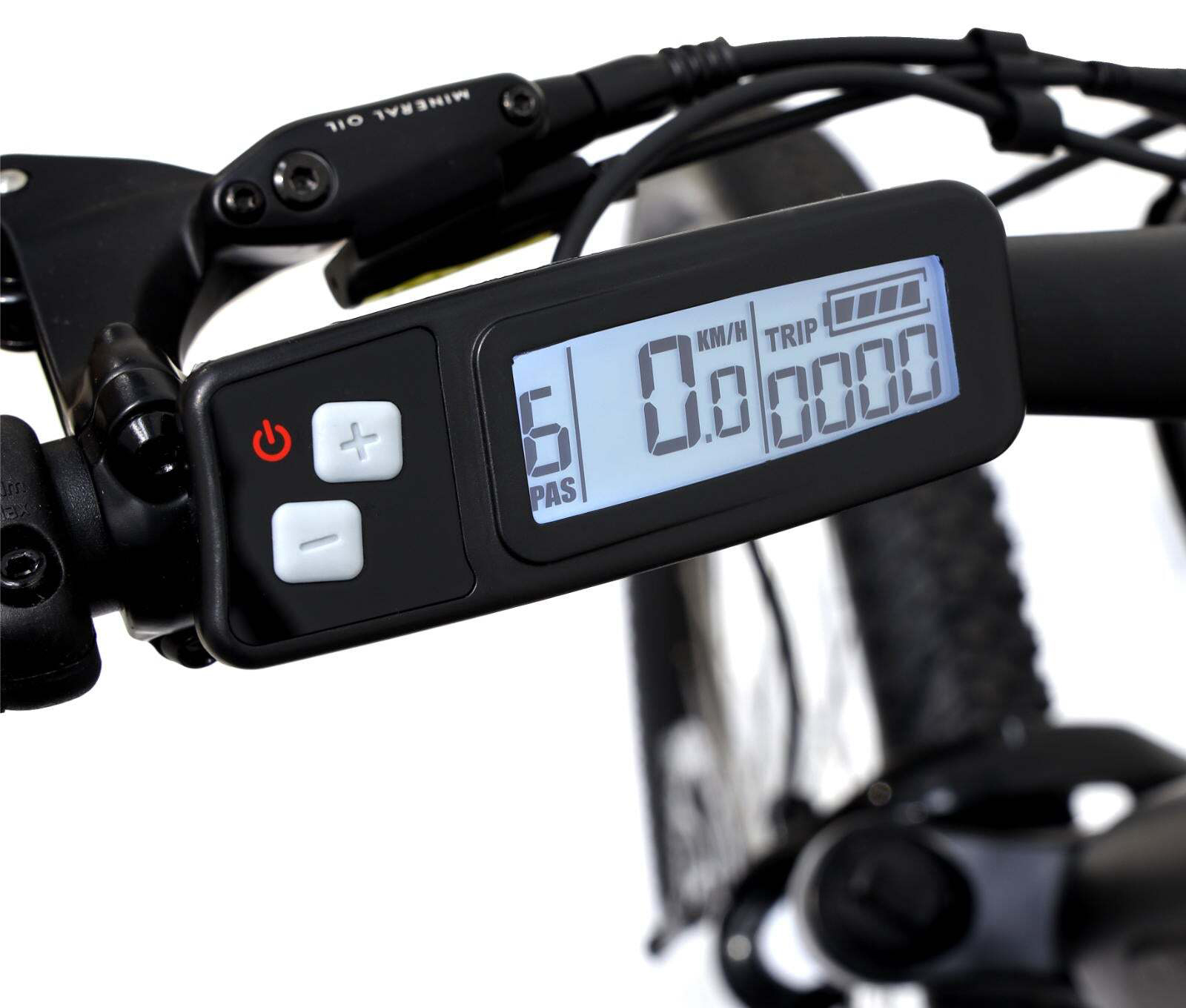

• DISPLAY FUNCTIONS - Backlit LCD / Water resistant / USB charge output / 6 Selectable motor assist levels / Battery level indicator / Speed / Trip functions

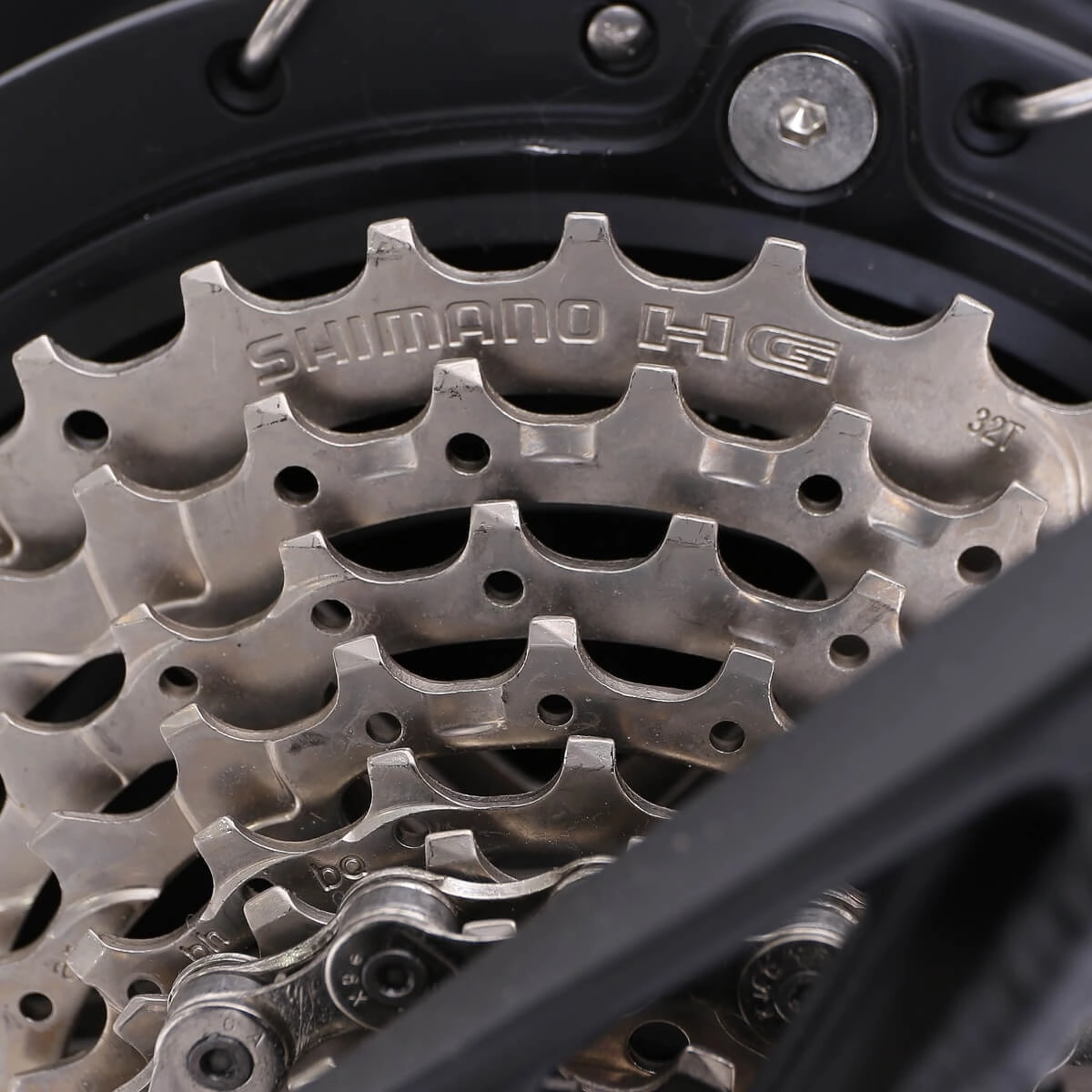

• DRIVETRAIN - 8-Speed Shimano Altus / Shimano Cassette 12-32T / Single 46T Front Chainring
• CADENCE SENSOR - Enclosed / Fast-Response / High-Precision

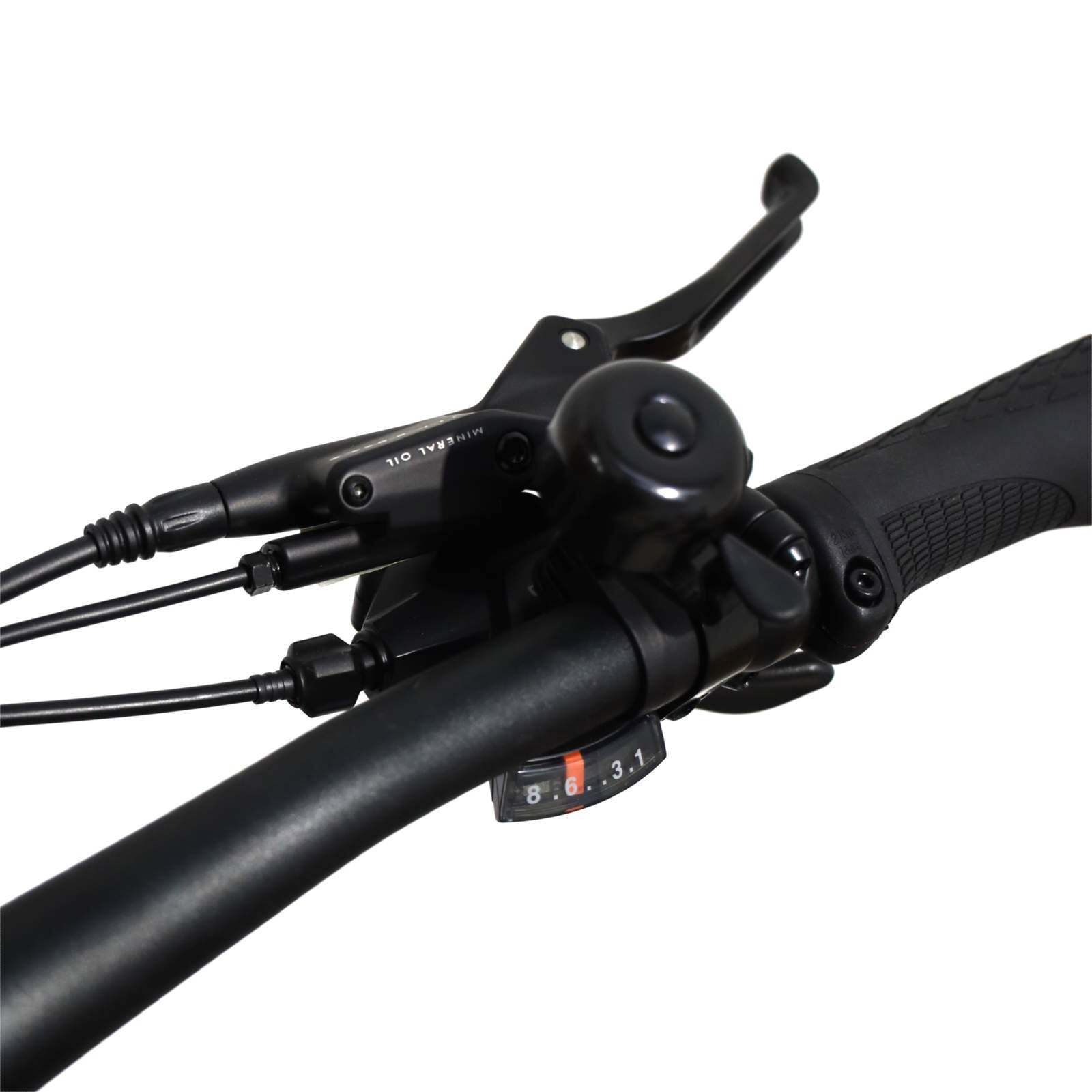

• BRAKES - Hydraulic Tektro Mechanism / 180mm Rotors / Alloy levers / Auto power cut-off
• FORK - Suntour XCM 30 Suspension / 100mm travel / Adjustable / Lock out
• WHEELS- Weimann Dyno E40 27.5” (650B) alloy rims / Pillar stainless steel spokes
• TYRES- Kenda 27.5 x 2.1" / Anti-puncture Slime tyre sealant / Low rolling resistance

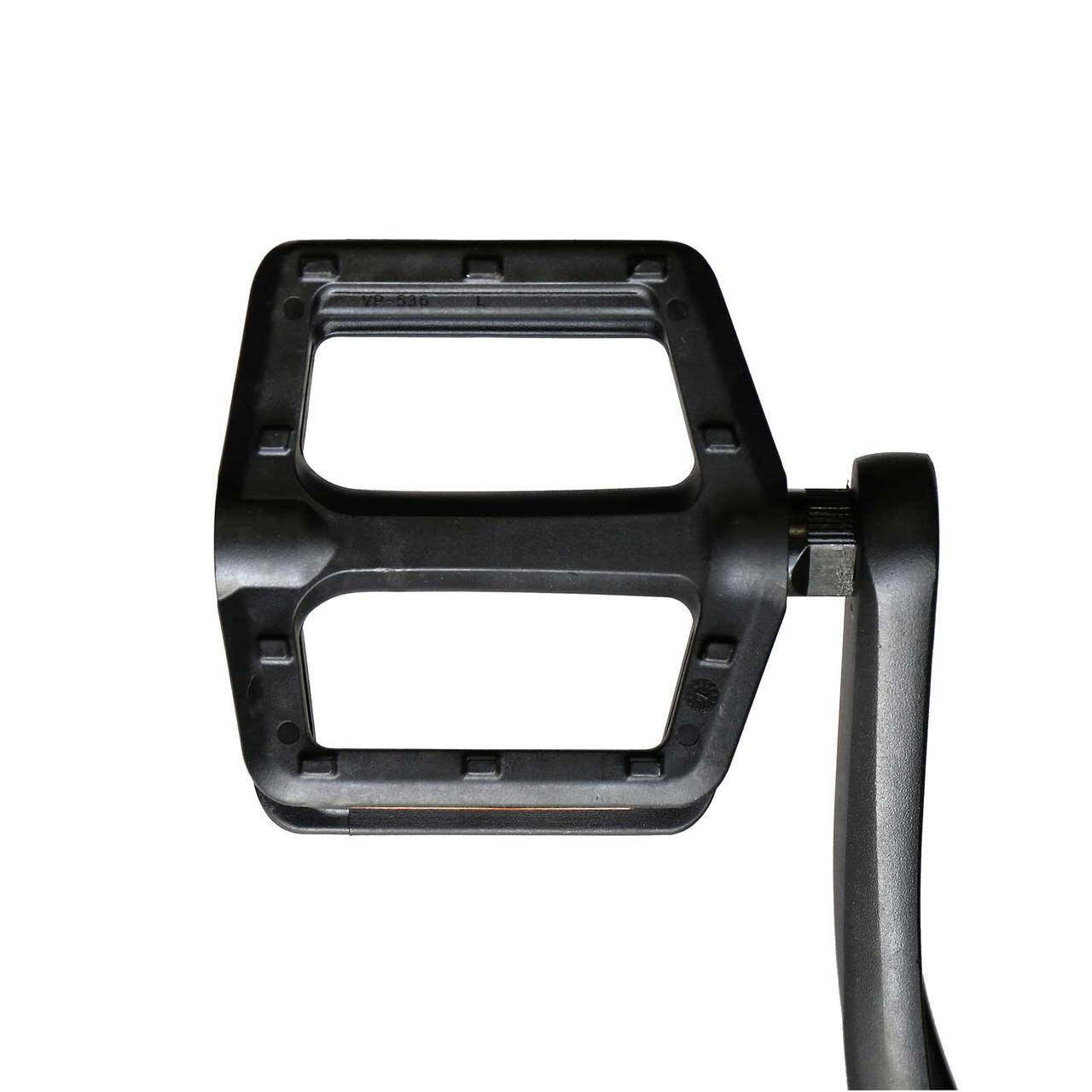

• PEDALS- VP Platform / Integrated reflectors

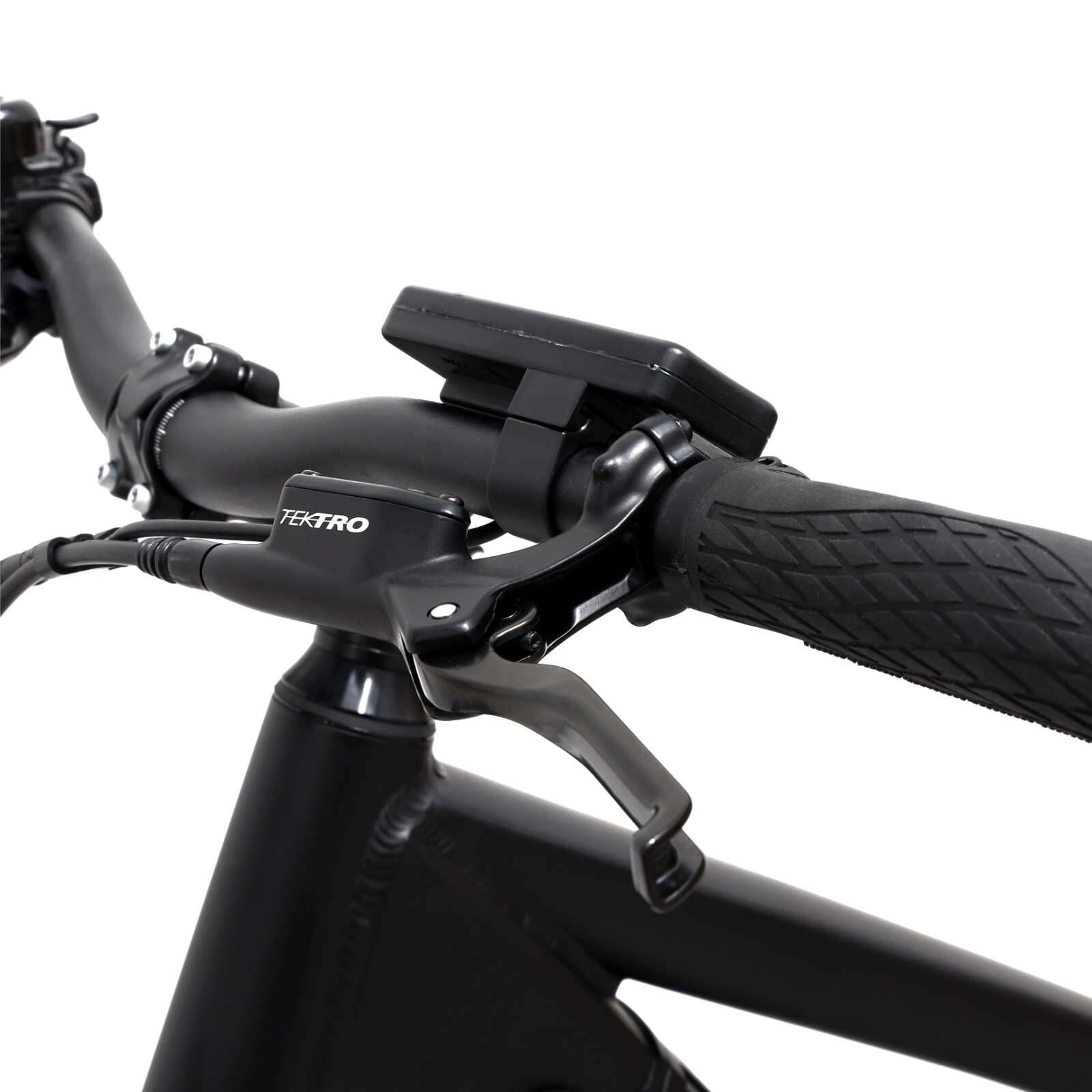

• HANDLEBARS- Alloy swept 680mm / 70mm alloy stem

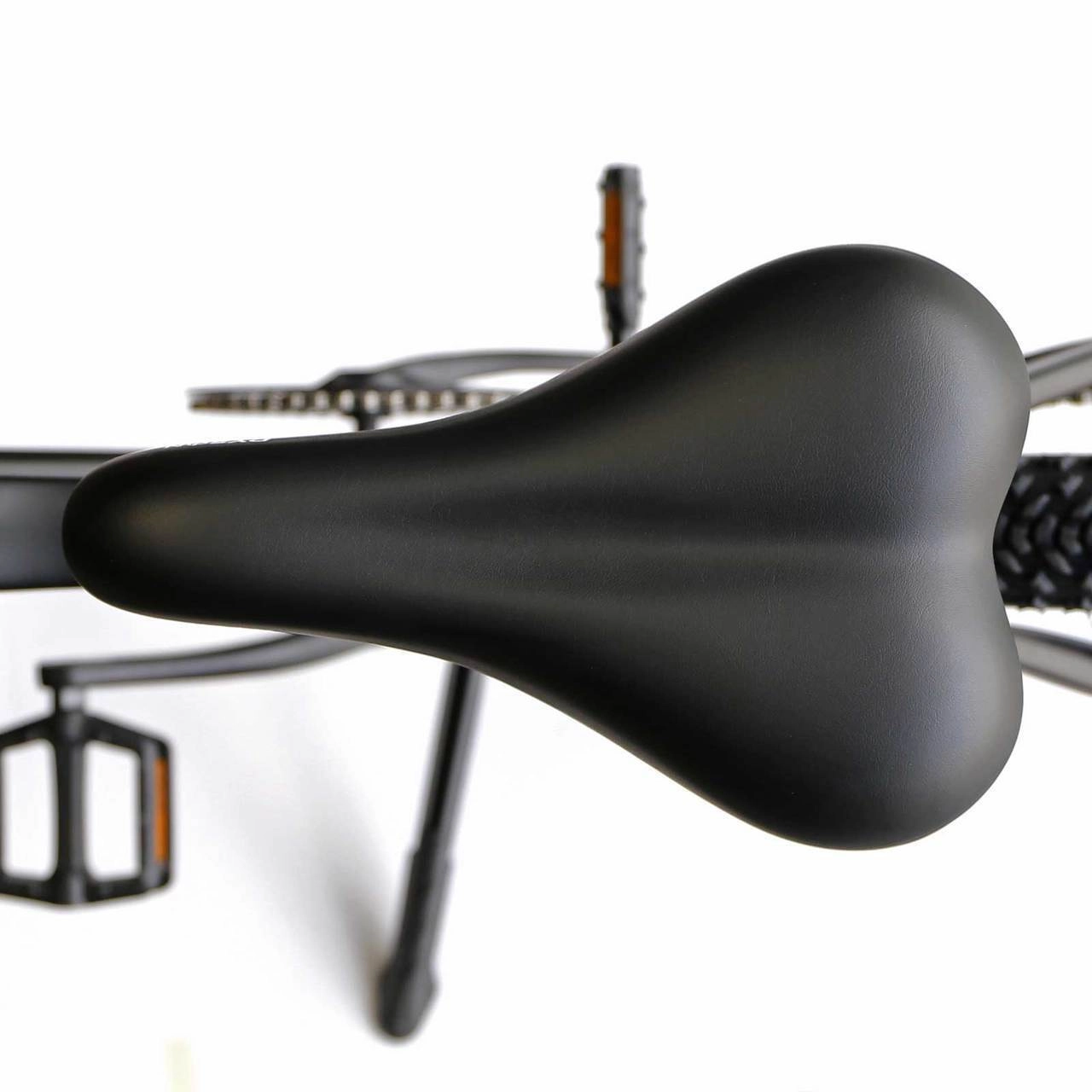

• SEAT- Comfort Gel / 31.6 x 400mm Alloy seatpost / Quick release clamp
• FENDERS– N/A
• LIGHTS – N/A
• RACK – N/A
• KICK STAND - Heavy-duty alloy / Centre mount
• CHARGER- AU Standards C-Tick approved / 3 Amp / 6-8h Charge time from empty
• COLOUR – Matt Black

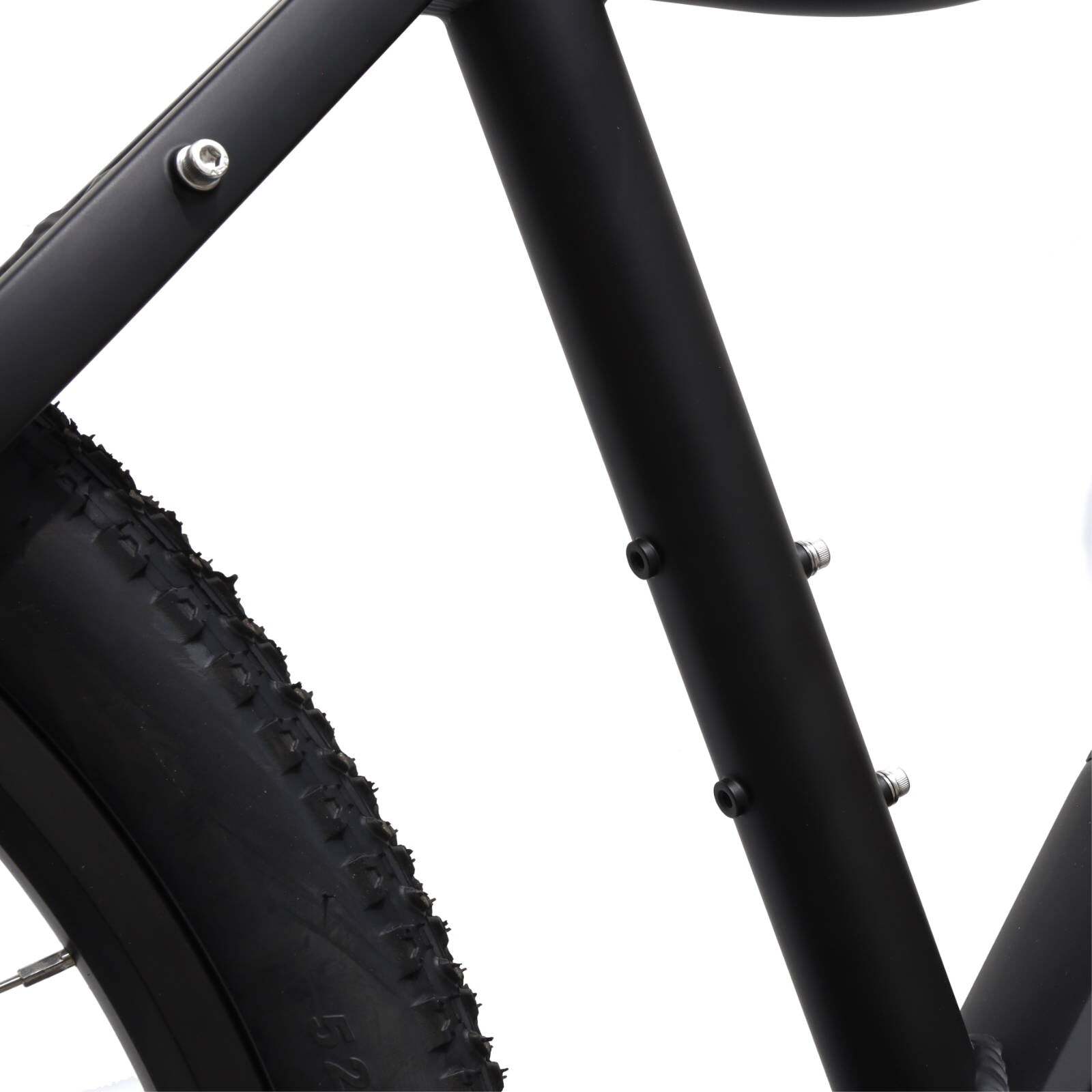

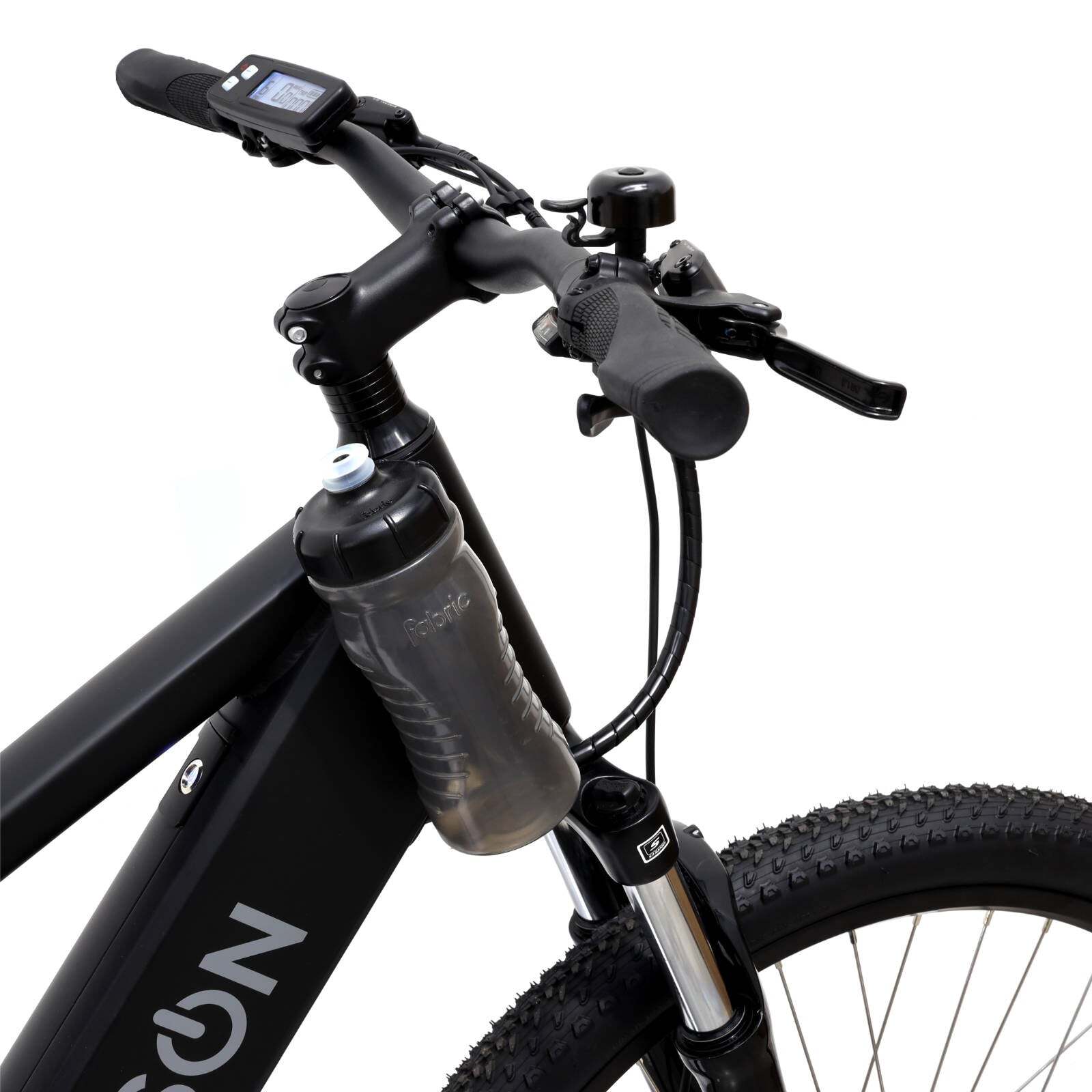

• ADDITIONAL - Fabric Cageless drink bottle studs as standard - ETook Bike Lock mounting studs as standard
• SEAT HEIGHT - Approx. - Low: 85cm - High: 110cm.
