Built to Tilt

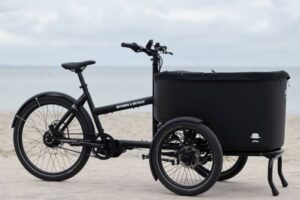

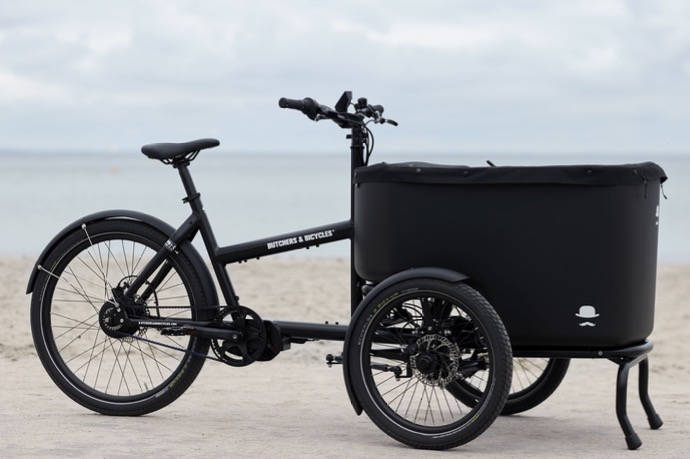

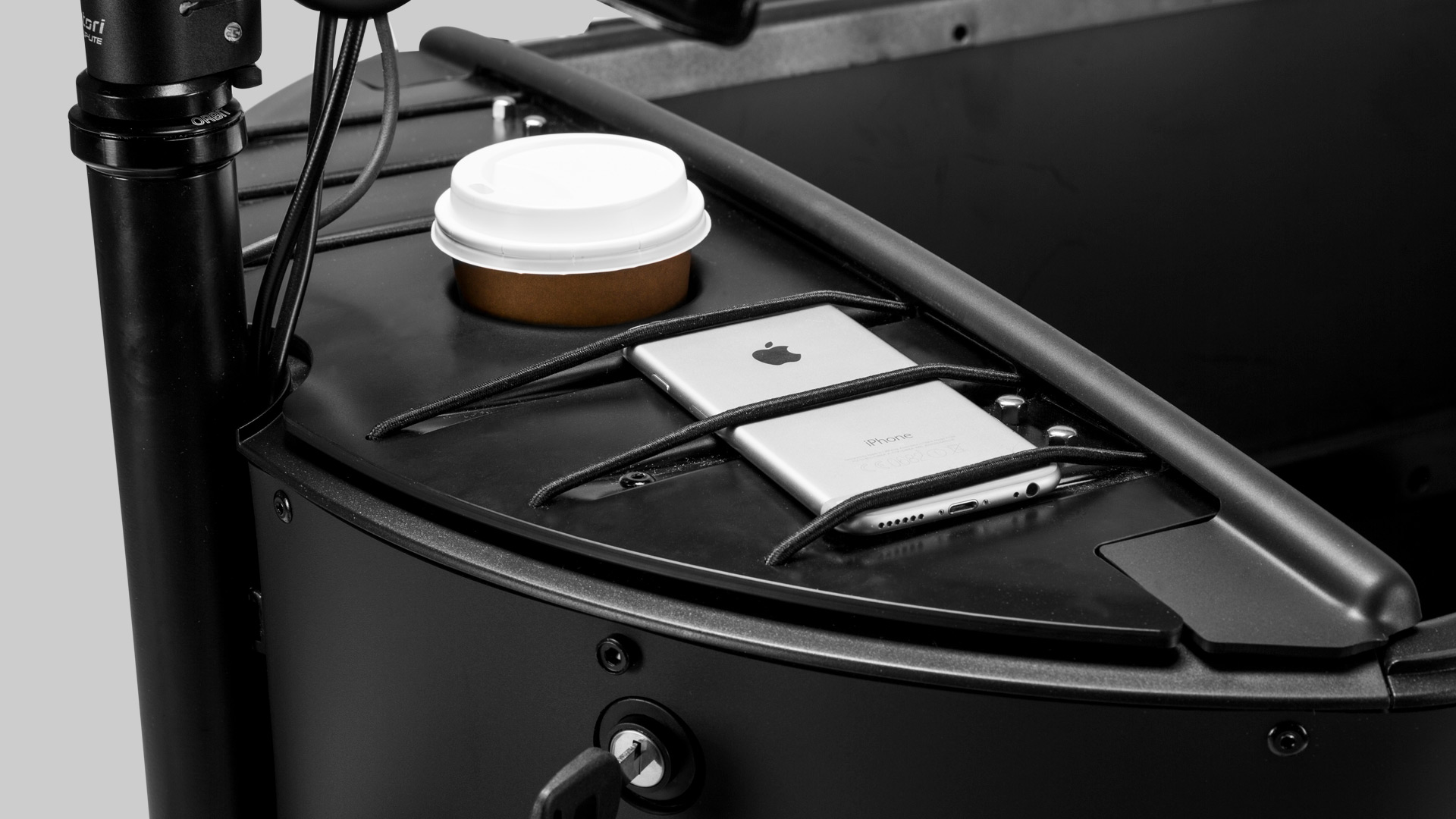

The  Mk1-E 3 is a fast, safe and super easy-to-ride e-cargo bike with car-like comfort. It even has a dashboard and cup holders!

The Mk1-E 3 comes in two models, the Vario and non Vario.

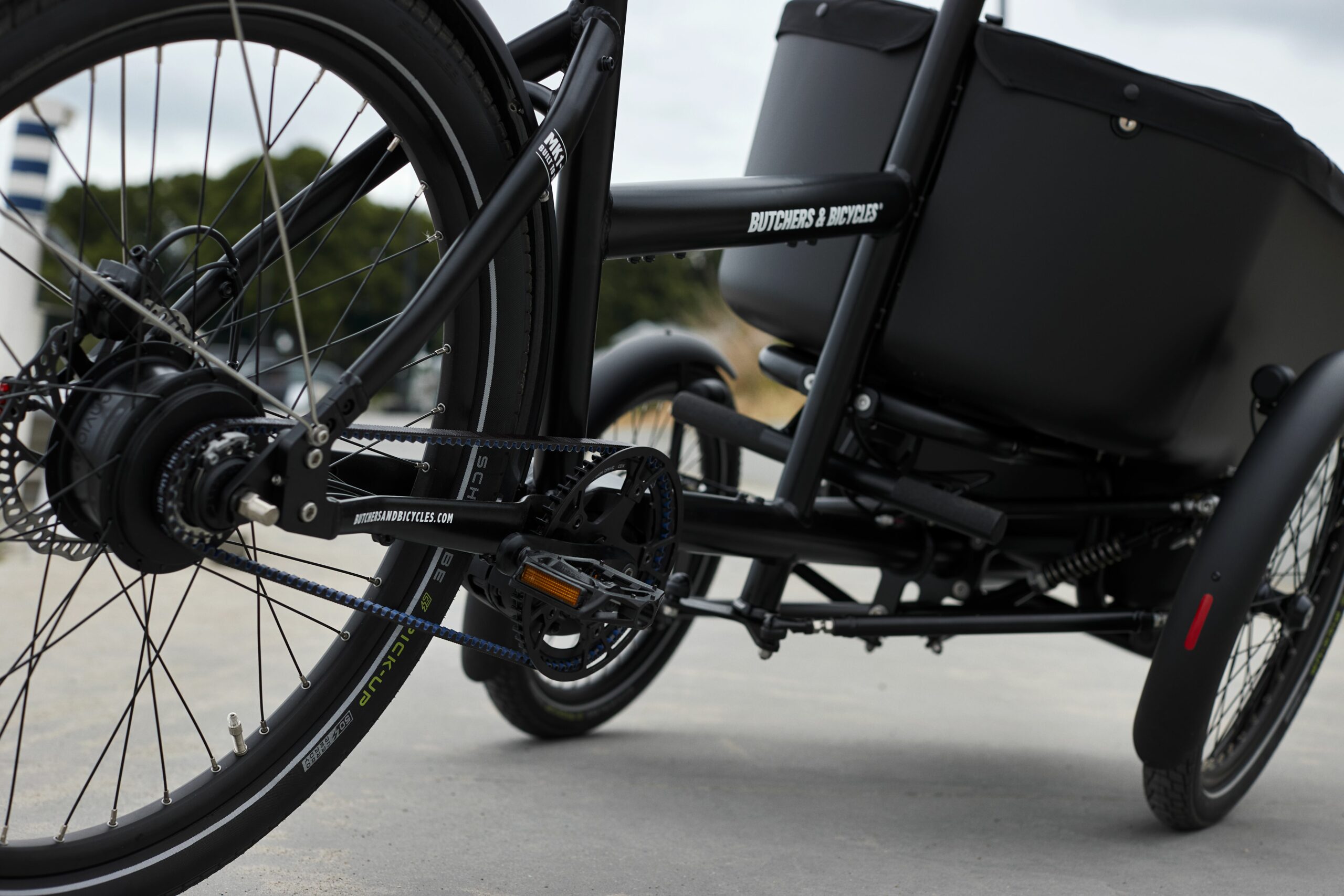

The Vario has the continuously variable Enviolo HD gear system, with the maintenance free Gates Carbon Belt Drive.

They share the same patented BUILT TO TILT™ technology which makes it safe and super easy to ride. All models come in either black or white.

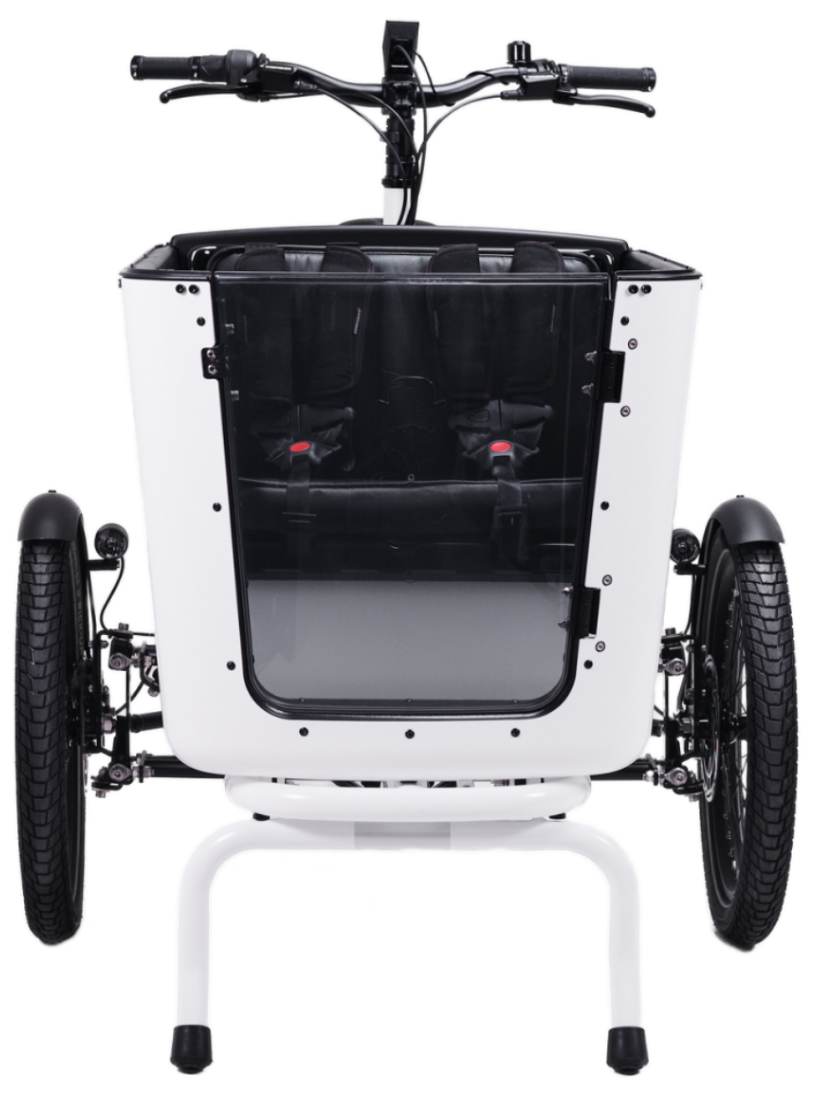

The cargo box comes with the transparent front door.

IMAGINED AND REALISED IN COPENHAGEN

The MK1-E 3 stands for high-quality without compromises, and over time the BUILT TO TILT™ cargo bike has proven its durability and functionality. We understand and respect the needs and pain points of modern urban families which is why we strive to achieve only the best and make sure you can focus on the adventures ahead.

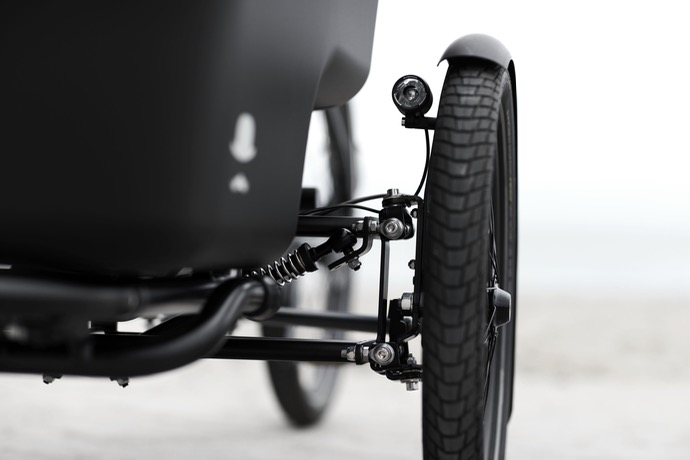

BUILT TO TILT CHANGES EVERYTHING

Riding the MK1-E is truly a completely different experience. It’s tilting technology is safe, intuitive and a whole lot of fun!

Total Weight
49 Kg (depending on model and accessories this may vary)

Load limits
Permissible total weight: 250 kg
Max. load in box: 80 kg, Max. rider weight 120 kg

Motor

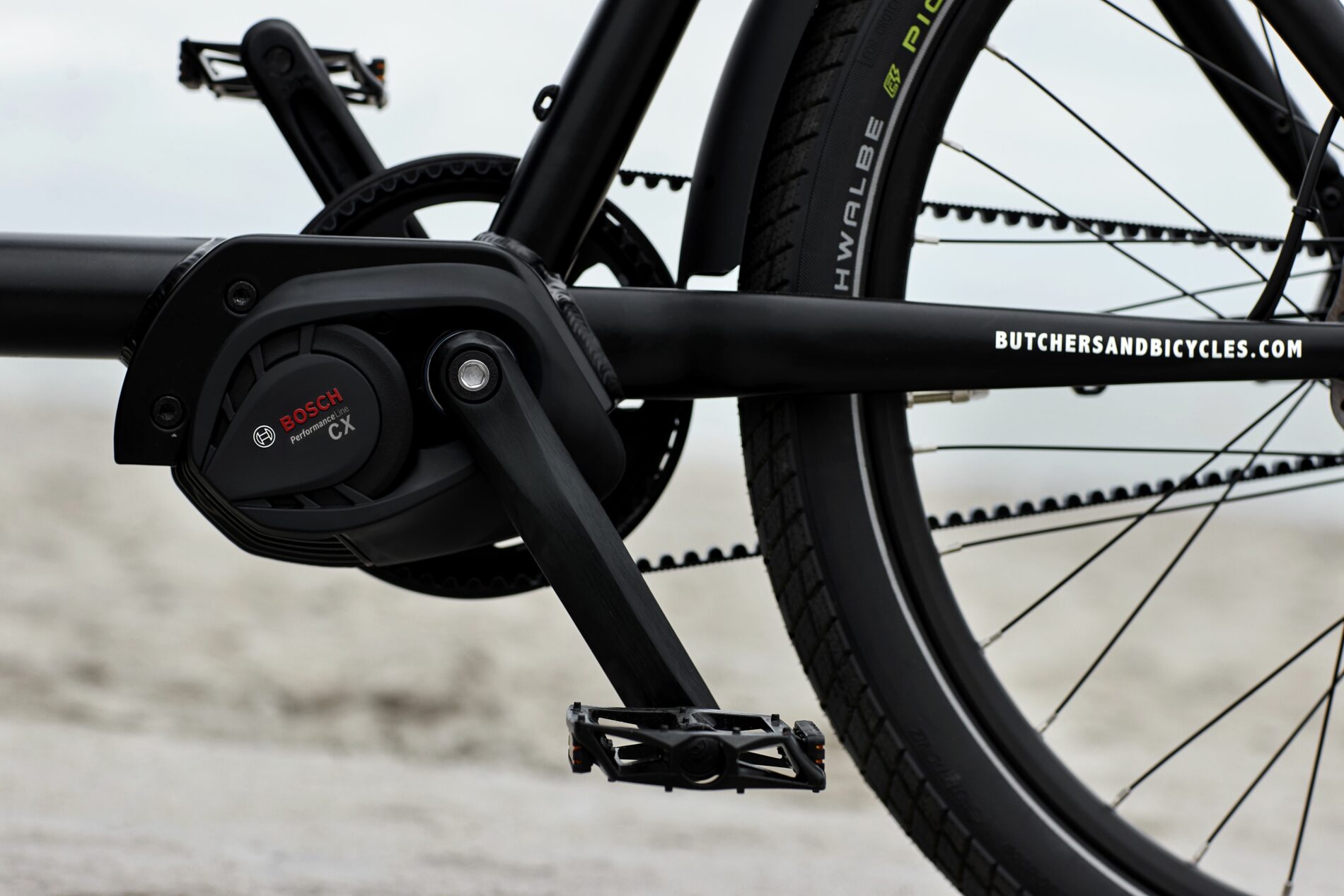

Bosch Performance line CX Gen4, 250 W (max. torque: 85 Nm)

Cut-off speed
25 km/h

Battery 500 Wh Bosch
1000Wh Bosch (2x 500Wh) Dual Battery is an option

Display
Bosch Kiox

Gear / Drive train
Vario: Enviolo Heavy Duty + Gates CDX

Tires front
20″ x 2.15 Schwalbe Big Ben
(Min-Max width: 1.35 to 2.30)

Tire rear
26″ x 2.15 Schwalbe Big Ben
Min-Max width: 1.35 to 2.30

Rims
ALEX rims, double wall aluminium

Brakes
Front: Hydraulic disc brakes Tektro HD-515, Ø160mm, parking brake, left-hand lever
Rear: Hydraulic disc brakes Tektro HD-285, Ø180mm, right-hand lever

Locks: KeyAlike:  ABUS Shield frame lock + Bosch Battery lock

Cargo Box material
ABS (body) and PC (door)

Frame
Aluminium 7000 series T6

Frame size
One size fits all (rider height btw 155 – 205cm)

Seat height
89 cm to 114 cm

Handlebar height
104 cm to 111 cm
